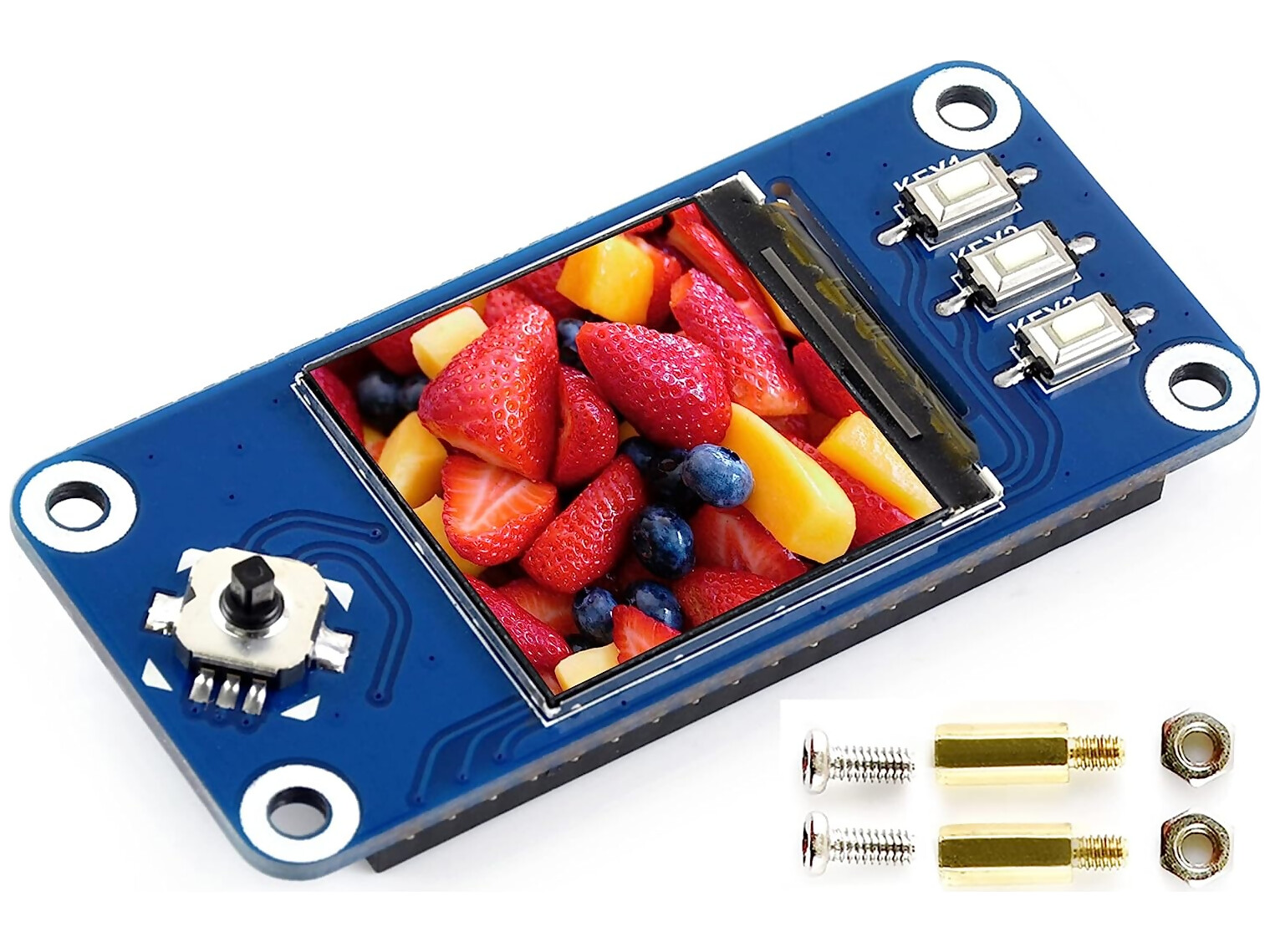

This is a 1.3" IPS LCD Hat for the Raspberry Pi, with 4 buttons and a mini joystick. It is a full RGB colour LCD, using the ST7789VW controller. The ST7789VW is a single-chip controller/driver for 262K-color, graphic type TFT-LCD. It consists of 240 source line and 320 gate line driving circuits. The resolution of this LCD is 240 (H) RGB x 240(V), it supports horizontal mode and vertical mode, and it doesn't use all the RAM of the controller. This LCD accepts 8-bits/9-bits/16-bits/18-bits parallel interface, that are RGB444, RGB565, RGB666. The color format used in demo codes is RGB565. This LCD use a 4-line SPI interface for reducing GPIO and fast speed.LCD For more information have a look at the Waveshare Wiki page.Waveshare Wiki page:waveshare.com/wiki/1.3inch_LCD_HAT We also sell many other Rapsberry Pi Pico related boards, RP2040 microcontroller based board. Features Operating voltage: 3.3V Interface: SPI LCD type: IPS Controller: ST7789VM Resolution: 240 x 240 Display size: 23.4（H）x 23.4（V）mm Pixel size: 0.0975（H）x 0.0975（V）mm Dimension: 65 x 30.2(mm) Package Includes 1 x LCD 1.3" IPS Raspberry Pi Hat [mx_insert-post-ebay slug="ebay-t-default"] SKU: RPI1-007 Categories: Pi Hats & Plates, Raspberry Pi Tags: lcd, RPi Pico
