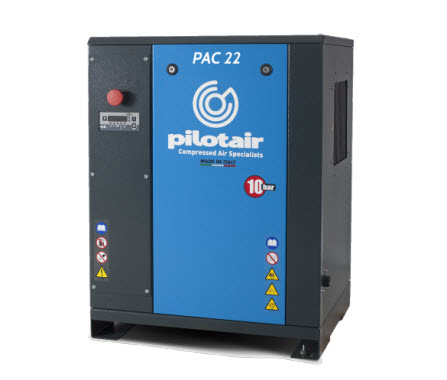

PILOT PAC 18.5-22 INDUSTRIAL 18.5-22KW 25-30HP ROTARY SCREW COMPRESSOR

Description FREIGHT EXTRA – POA Specifications Model Free Air Delivery @ 8 Bar Free Air Delivery @ 10 Bar Motor Size Noise Level Dimensions Weight L/S CFM L/S CFM KW HP d(B)A L x W x H (mm) kg(Approx.) PAC 4 9.7 20.5 8.1 17.1 4.0 5.5 60 580 x 480 x 760 100 PAC 5 12.0 25.4 10.8 22.9 5.5 7.5 64 580 x 480 x 760 102 PAC 7.5 20.8 44.1 16.7 35.3 7.5 10.0 68 800 x 650 x 980 185 PAC 11 27.5 58.2 25.0 53.0 11.0 15.0 69 800 x 650 x 980 200 PAC 15 35.8 75.9 30.8 65.3 15.0 20.0 70 800 x 650 x 980 210 PAC 18.5 46.7 99.0 41.7 88.0 18.5 25.0 66 1350 x 800 x 1130 350 PAC 22 55.8 118.0 50.0 106.0 22.0 30.0 68 1350 x 800 x 1130 380 PAC 30 78.3 165.9 70.0 148.3 30.0 40.0 70 1530 x 830 x 1440 630 PAC 37 100.0 212.0 88.3 187.0 37.0 50.0 68 1530 x 830 x 1440 700 PAC 45 120.0 254.0 108.3 229.0 45.0 60.0 72 1600 x 970 x 1860 910 PAC 55 143.3 304.0 130.0 275.0 55.0 75.0 74 1600 x 970 x 1860 952 PAC 75 203.3 431.0 175.0 371.0 75.0 100.0 72 1800 x 1100 x 2150 1720 Max Pressure ranges available 8-10-13 BAR on request Models PAC11, PAC15 and PAC22 available in 15 BAR Max Pressure on request F.A.D. as per ISO1217 @ 7.5 – 9.5 Bar. Sound level measured in accordance with PNEUROP / CAGI Standards. Technical data conforms to /- 5%. Pilot Air reserves the right to modification without notice for design and technical improvements. Warranty: 2 years on compressor pump, 1 year on all other components. For over 40 years Pilot Air Compressors has been meeting the needs of industry. Ask us about your requirements. Enjoy simple and efficient maintenance with the Pilot PAC Industrial 18.5-22KW (25-30HP) Rotary Screw air compressor, with easily accessible internal components. The poly-v belt driven system offers long life and minimum maintenance, while the cooling system has a thermally controlled independent radial fan that ensures constant air and oil temperatures, even during heavy working conditions. The advanced electronic controllers include: Four maintenance timers (air cartridge, oil, oil filter, oil separator) Automatic restart after power failure Cooling fan temperature settable Compressor remote start settable Integrated sequence phase display Controller with multi-function backlight display, with alphanumeric menu. The main screen displays: working pressure (offload/load), oil temperature, total working hours, on-load working hours, compressor status led (stand-by, offload, load), hours remaining before maintenance Functionality to operate and equalise the workload of up to 4 PAC compressors.
