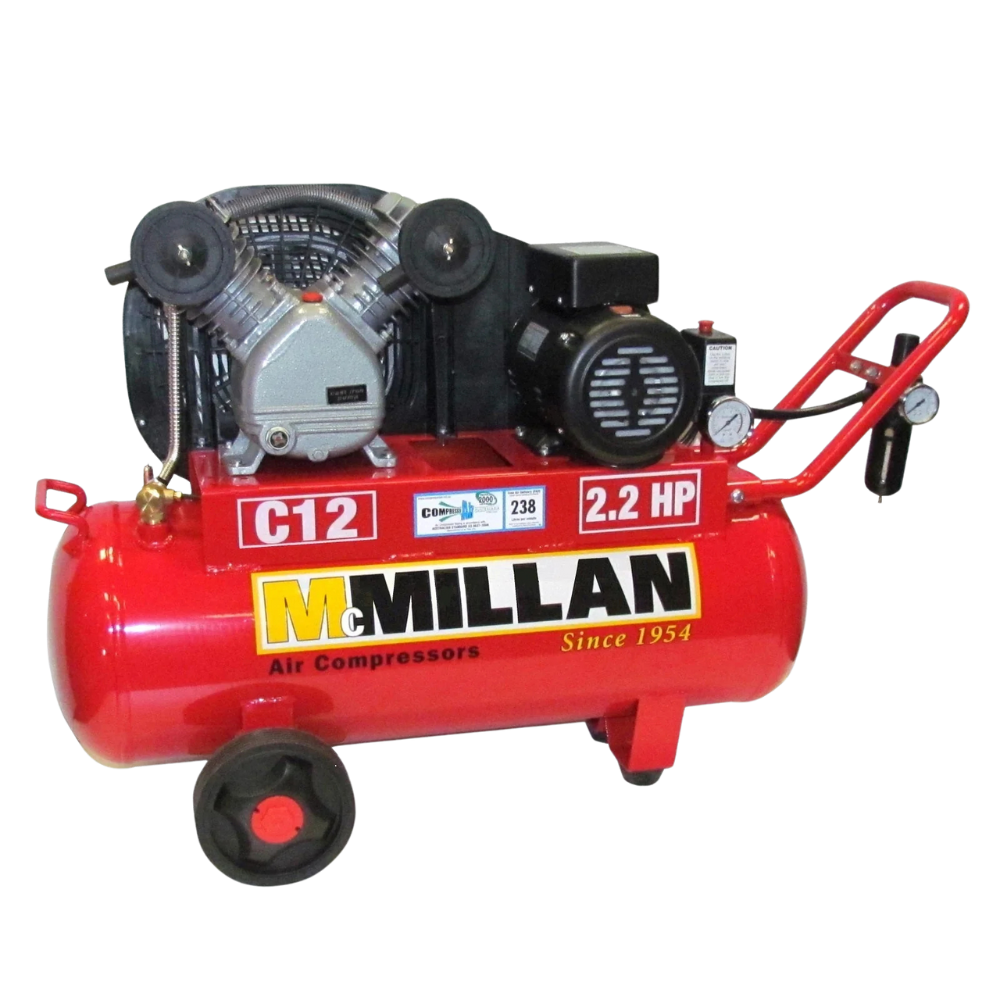

MCMILLAN AIR COMPRESSOR ELECTRIC MOTOR 240V C12

Description C Series – 240V Built in Australia. Features heavy duty cast iron pumps in V-twin and W-triple configurations. Rated to AS4637. Includes filter/regulator kit (C12 & C16). Heavy duty “close grain” cast iron construction. Featuring highly efficient reed valves. Fully balanced flywheel with large cooling blades. Guarding meets Occupational Health and Safety Standards. Tank meets Australian Standard AS1210. Capacitor start/Capacitor run. Full range of spare parts. Removable wheels & handle. Techtop motor with overload protection. Supported by Techtop National Service Network. Warranty. 5 years on pump. 5 years on tank. 1 year on motor and fittings. Dual control option available for all models.** Download PDF Product Code Displacement Free Air Delivery Motor Tank Power 240V Max. Pressure Pump Model Cylinders CFM L/min CFM L/min HP Litres Amps psi C 12 12.3 348 8.4 238 2.2 60 10 A 140 LB 30 V-Twin C 16 16.0 453 11.6 328 3.2 60 15 A 140 LB 40 W-Triple C 16/L 16.0 453 11.6 328 3.2 125 15 A 140 LB 40 W-Triple C 22 23.6 668 16.3 461 5.0 155 20 A 140 LB 50 V-Twin   Weight Dimensions Kgs Width Length Height 69 335 940 700 76 335 940 770 119 400 1450 850 171 500 1500 1000   * Dimensions exclude wheels and handle * 240 volt High Pressure 2 stage – also available ** Dual control allows for constant run option if power is supplied by marginally sized generator or in an area with bad 240 volt power 3.2Hp motors must only be used with 15A power outlet. For improved air quality please consider our Refrigerated Dryers and Filters.
