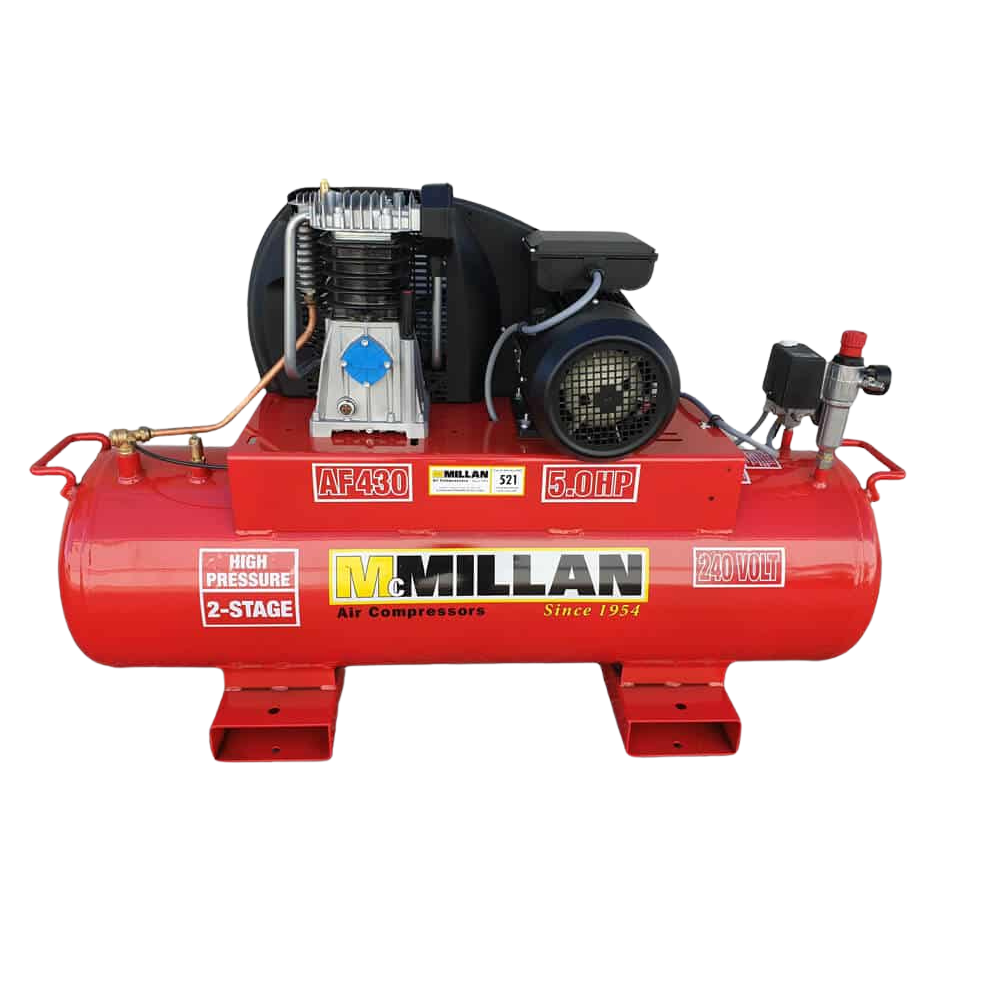

MCMILLAN AIR COMPRESSOR 240V 5HP 155L TANK AF430 – FREIGHT QUOTED SEPARATELY

Description This is the AF430. Developed by McMillan Air Compressors to answer the need for a high capacity single phase compressor, the AF430 is the biggest readily available, high pressure, 240V compressor in our market. Using an Italian made ABAC pump it displaces 489 l/min with a maximum working pressure of 160p.s.i. It’s the ideal solution for the demanding truck workshop or small factory. Pressure is regulated by McMillan’s NEMAC pressure controller and switching is provided by means of heavy-duty TECO electromagnetic contactors. AF430 has saved many customers money that they would have spent on upgrading to a 415V supply in order to run a large compressor. It simply requires a dedicated 240V electrical circuit protected by a 20A circuit breaker. In most factories and on most farms this power source is readily available. The compressor is supplied with a large 3-pin plug that can be connected to a 20A wall socket, or it can be permanently wired into a dedicated line. In the rural environment where 480V SWER (Two Phase) power is available, the AF430 can be supplied, wired for this power source. For more information on this, see: OP-Series 240V Built in Australia. 20A single phase electric motor. Features heavy duty, cast-iron pump, or ABAC high pressure pump. Rated to AS4637. 5Hp Totally Enclosed Fan Cooled motor. (C22/AF430) Supported by National Service Network. Nema Pressure Switch with overload. (C22/AF430) Pressure switch controlled*. Fitted with Italian MAXI filter regulator. (C22/AF430) Featuring highly efficient reed valves. Fully balanced flywheel with large cooling blades. 1⁄2” BSP tank outlet. Guarding meets Australian Occupational Health & Safety Standards. AF430 fitted with high pressure ABAC pump. C-Series fitted with heavy duty cast-iron pump. C32 fitted with 2x McMillan cast iron pumps. Forklift feet on all models. Tank meets Australian Standard AS1210. Full range of spare parts available. Warranty. 5 years on pump. 5 years on tank. 1 year on motor and fittings. Download PDF Product Code Displacement Free Air Delivery Motor Tank Power 240V Pump Model Cylinders / Stages CFM L/min CFM L/min HP Litres Amps C22 23.6 668 16.3 461 5.0 155 20 A LB 50 2 / 1 AF430 17.3 489 15.1 430 5.0 155 20 A A49B 2 / 2 C32 32.0 906 23.3 659 2 x 3.2 190 2 x 15A 2 x LB40 6 / 1   Weight Dimensions Kgs Width Length Height 171 500 1500 1000 169 500 1500 1000 201 440 1800 820   * See website blog for details * Also available with Constant Run Option CFM x 28.3 = Litres per minute Displacement & FAD calculated at 100psi Specifications/configuration may change at any time without notice For improved air quality please consider our Refrigerated Dryers and Filters
