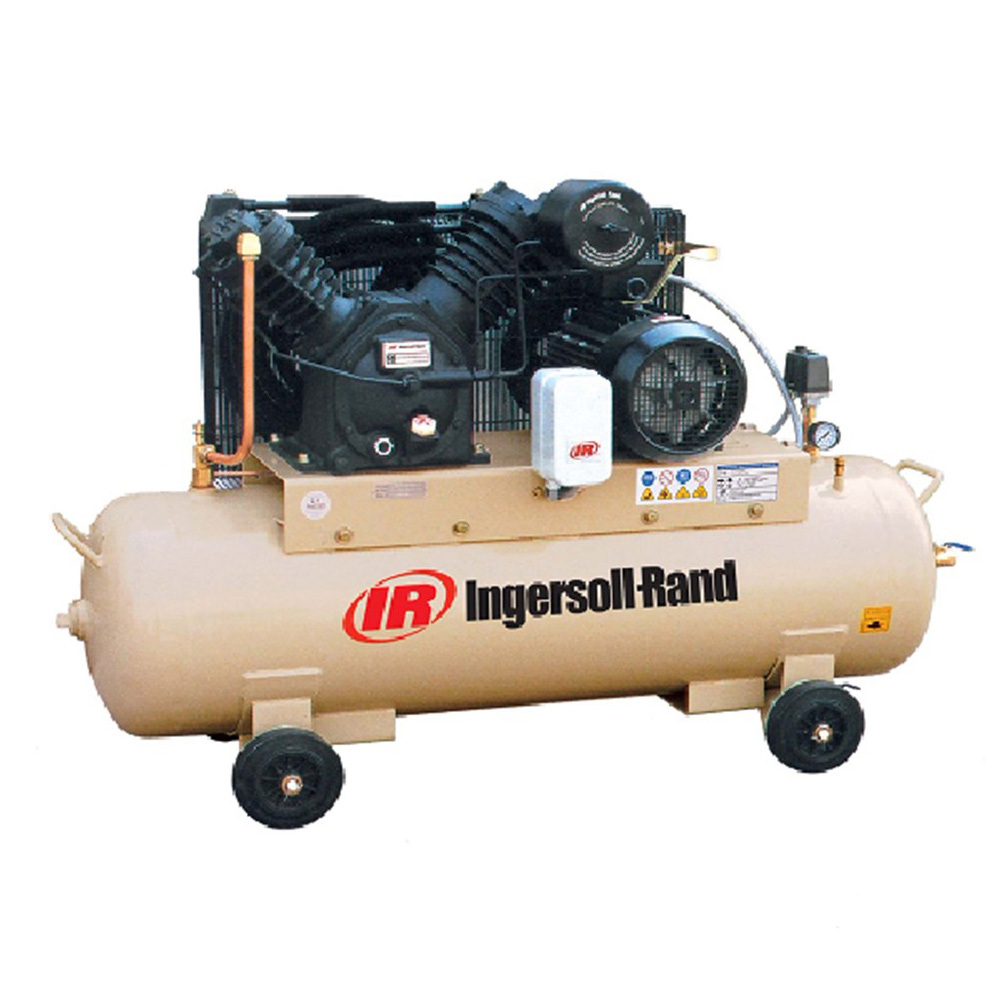

INGERSOLL RAND ELECTRIC 7.5KW 10HP 3 PHASE COMPRESSORS 2545C10/8-SD

Description The 2545C10/8-SD air compressor consists of a heavy duty fabricated steel compressor unit mounted on a Australian approved receiver tank. This 415V Belt driven unit operates at 10hp and 125 psi pressure; true industrial use compressors and delivers 34cfm. The drive is V-Belt type with provision for easy adjustment of Belt slack. An easily removed, totally enclosed wire Belt guard. Precision balanced low-pressure aluminium and high pressure cast iron pistons provide smooth operation. Ingersoll Rand’s Type 30 inNOvative two-stage design allows for cooler operating temperatures and overall better power performance. Built with robust cast iron cylinders, the 415V Belt-driven units are a quality investment. FEATURES Durable 100% cast iron cylinder and frame, and two-stage design offering extended pump life for years of trouble-free service. Capable of 175psig maximum operating pressure (factory set at 125psig or 175psig). 100% continuous duty rated for tough applications. Automatic start/stop control Condor pressure switch operation. Dual control on 10hp and above – constant speed and auto start/stop control. Includes motor starter, oil sight glass, manual drain and Australian approved tank. SPECIFICATIONS Free Air Delivery 34.2cfm/968lpm Pump 2545 Cast iron NO. of Cylinders 2 Compression Stages 2 Free Speed (rpm) 1020 Oil Limit alert Switch Optional Auto Condense Drain NO Motor Size 7.5kw/10hp Power Type 415v 50Hz electric Engine N/A Drive Type Belt Working Pressure 125psi/860kpa Starter Star Delta Starter Constant/ Dual Controls STANDARD Centrifugal Unloader STANDARD Air Tank Capacity (L) 230L Mounted Type Tank Mounted Weight (kgs) 374 Dimensions Lxlxh (mm) 1740x620x1130 NOise Level dB(A)@1m 83
