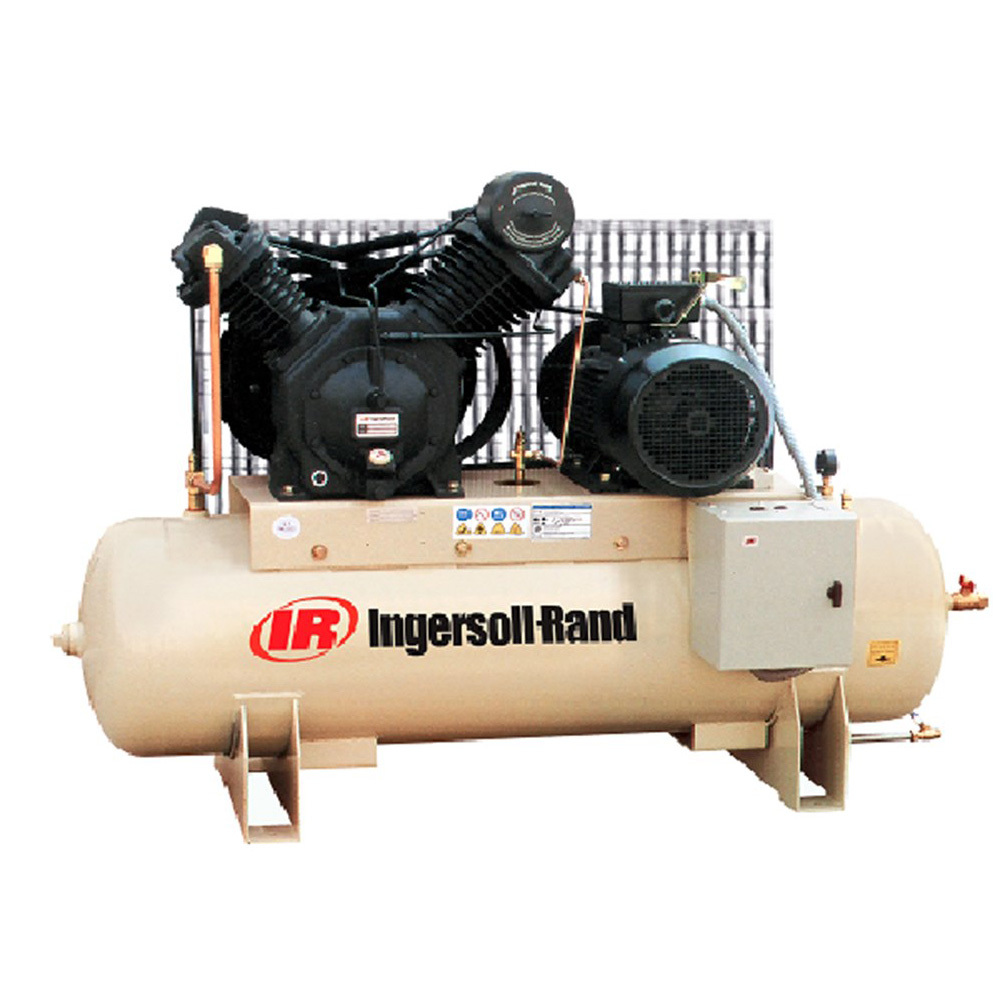

INGERSOLL RAND ELECTRIC 10KW 15HP 3 PHASE COMPRESSORS 7100D15/8

Description The 7100D15/8 S/D air compressor consists of a heavy duty fabricated steel compressor unit mounted on a Australian approved receiver tank. This 415V Belt driven unit operates at 15hp and 125 psi pressure; true industrial use compressors and delivers 46.7cfm. The drive is V-Belt type with provision for easy Belt tensioning. An easily removed, totally enclosed wire Belt guard is STANDARD equipment. Precision balanced low-pressure aluminium and high pressure cast iron pistons provide smooth operation. Ingersoll Rand’s Type 30 inNOvative two-stage design allows for cooler operating temperatures and overall better power performance. Built with robust cast iron cylinders, the 415V Belt-driven units are a quality investment. FEATURES Durable 100% cast iron cylinder and frame, and two-stage design offering extended pump life for years of trouble-free service. Capable of 175psig maximum operating pressure (factory set at 125psig or 175psig). Automatic start/stop control Condor pressure switch operation. Dual control on 10hp and above – constant speed and auto start/stop control. Includes motor starter, oil sight glass, manual drain and Australian approved tank. SPECIFICATIONS Free Air Delivery 47.2cfm/1336lpm Pump 7100 cast iron NO. of Cylinders 2 Compression Stages 2 Free Speed (rpm) 1030 Oil Limit alert Switch Optional Auto Condense Drain NO Motor Size 10kw/15hp Power Type 415v 50Hz electric Engine N/A Drive Type Belt Working Pressure 125psi/860kpa Starter Star Delta Starter Constant/ Dual Controls STANDARD Centrifugal Unloader STANDARD Air Tank Capacity (L) 303L Mounted Type Tank Mounted Weight (kgs) 583 Dimensions Lxlxh (mm) 1890x880x1325 NOise Level dB(A)@1m 85.1
