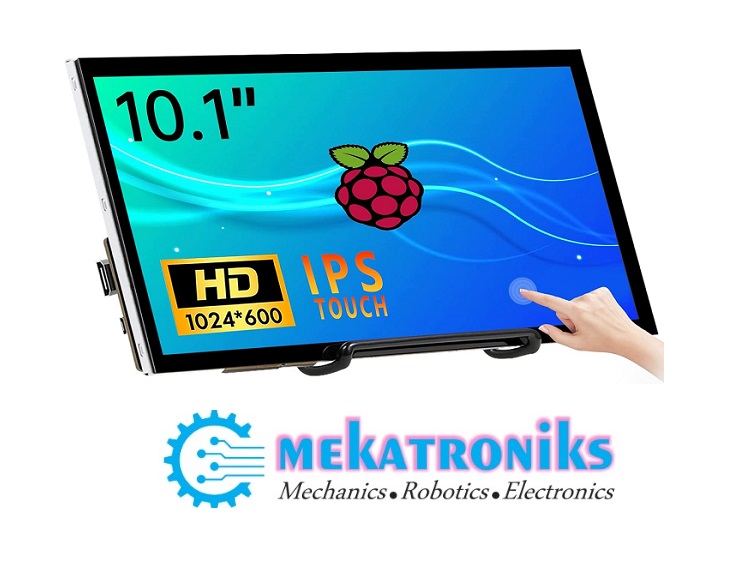

10.1 inch HDMI Compatible ,LCD Display Module Capacitive Touchscreen in Pakistan

Specifications:1. Screen Type: IPS screen 2. Screen Size: 10.1 inch 3. Resolution: 1024 x 600 4. Backlight adjustment: Switching and adjusting of dial switch 5. Volume adjustment: Switching and adjusting of dial switch 6. Touch Screen Type: Capacitive Touch Screen 7. Touch IC: GT9271 8. Power: MicroUSB（5V） 9. Speakers Power: 8Ω 2W 10. Video Input Interface: HDMI-compatible 11. Audio Output Interface: 3.5mm Audio Interface Stereo dual speaker output 12. Module Size (L x W x H): 164.90 × 102.00 × (14.25±0.2)mm 13. Packaging Size (L x W x H)295*195*70 (mm)10.1 LCD HDMI Capacitive Touch LCD① HDMI-compatible Interface: Input HDMI-compatible signal, using HDMI-compatible cable connection, commonly used to connect to the computer ，The maximum supported resolution is 1920×1080 ② Touch Interface: Transfer touch signal, connect with micro USB cable, provide touch and power supply function, commonly used to connect computer ③ Power Interface: Connect to the power supply and use micro USB cable to connect. Only power supply function is provided ⑤ Stereo speakers: Output audio signal for external playback of audio signal ⑥ Touch Interface: Transmit touch signal, connect with micro USB cable, provide touch and power supply function, commonly used to connect Raspberry Pi ⑦ HDMI-compatible Interface: Input HDMI-compatible signal, connect with HDMI-compatible adapter, only used to connect to the Raspberry Pi， The maximum supported resolution is 1024×600 ⑧ Cooling Fan Interface: Connect cooling fan ⑨ Copper x 8: Used to connect raspberry pie and scaffolds ⑩Wheel Switch: Used to adjust screen backlight brightness and volume. By default, in the volume adjustment state, up and down to adjust the volume and -. Press the switch to switch to the backlight brightness adjustment state, up and down to adjust the backlight brightness increase and decrease respectively. The volume and backlight brightness adjustment state is switched by pressing the switch
